MASSEY

Description

F SERIES – PRODUCTIVITY

A Full Range of Operations – Fields are not always perfectly level. In order to match the needs of a wide range of conditions, Farmer Series disc mowers are capable of functioning in an agricultural application through a large array of operating angles.

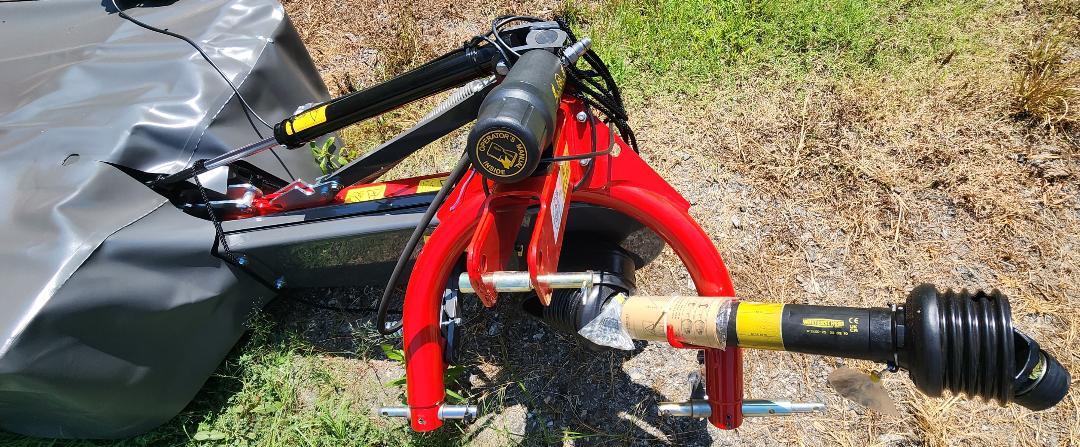

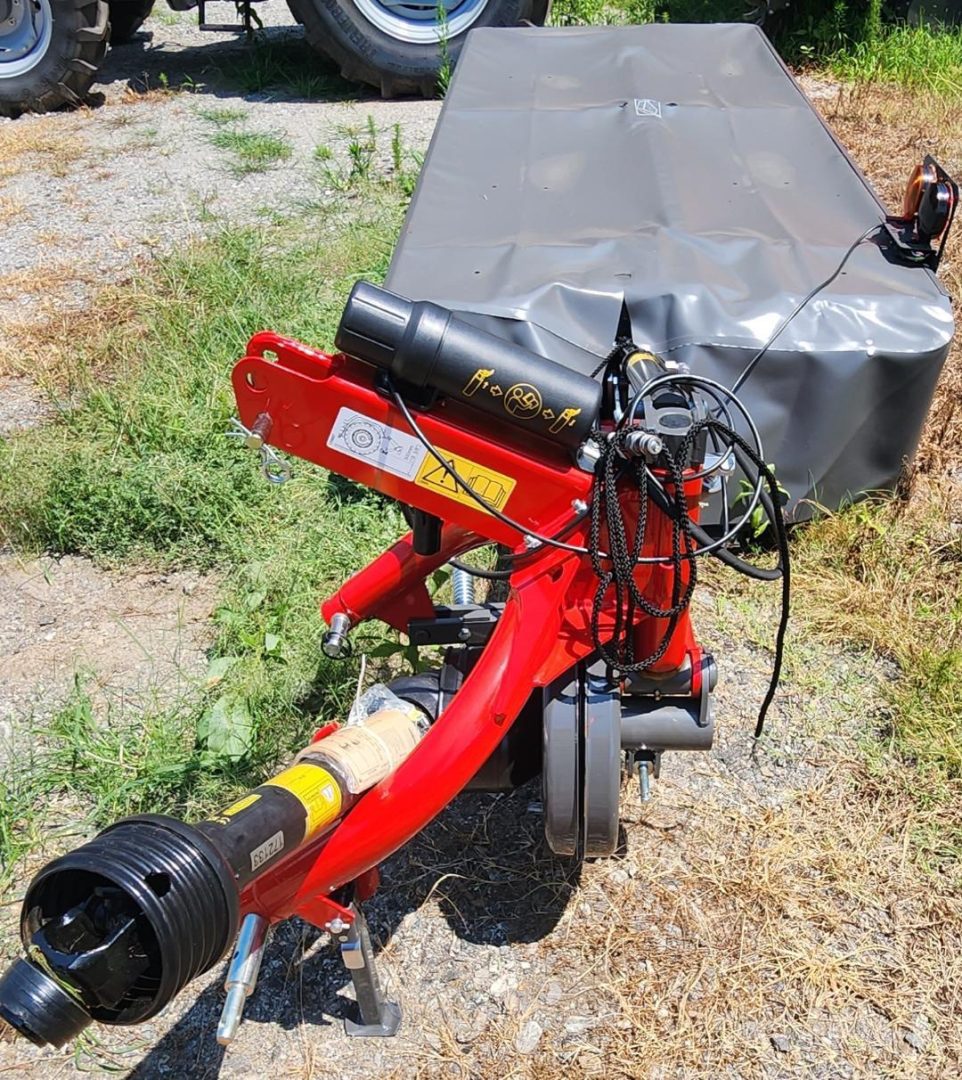

Drive System – Farmer Series disc mowers are equipped with an efficient, easy-to-maintain drive system.

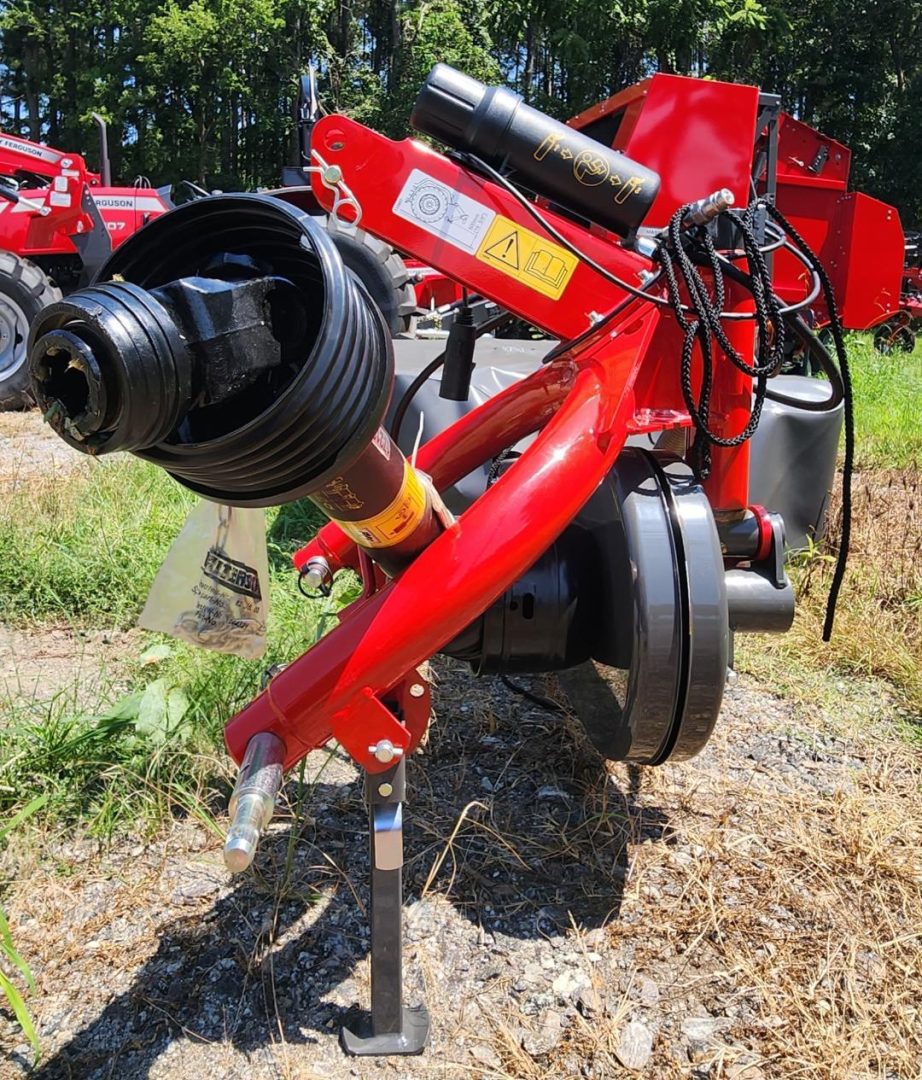

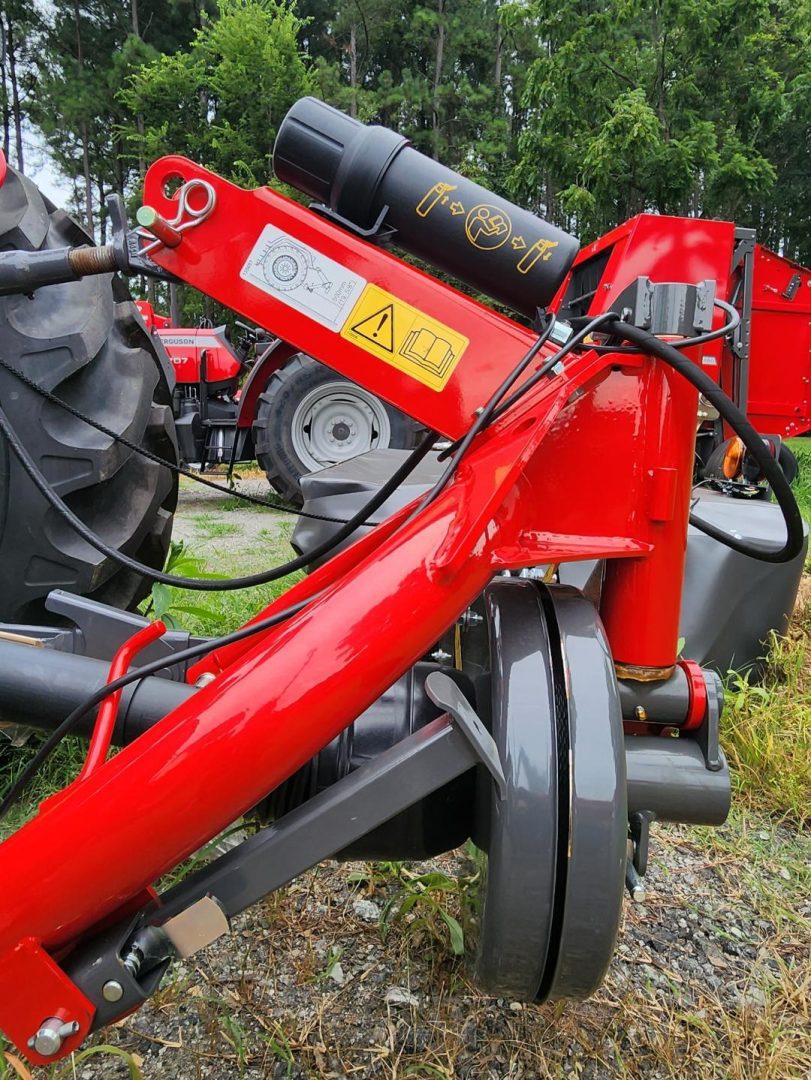

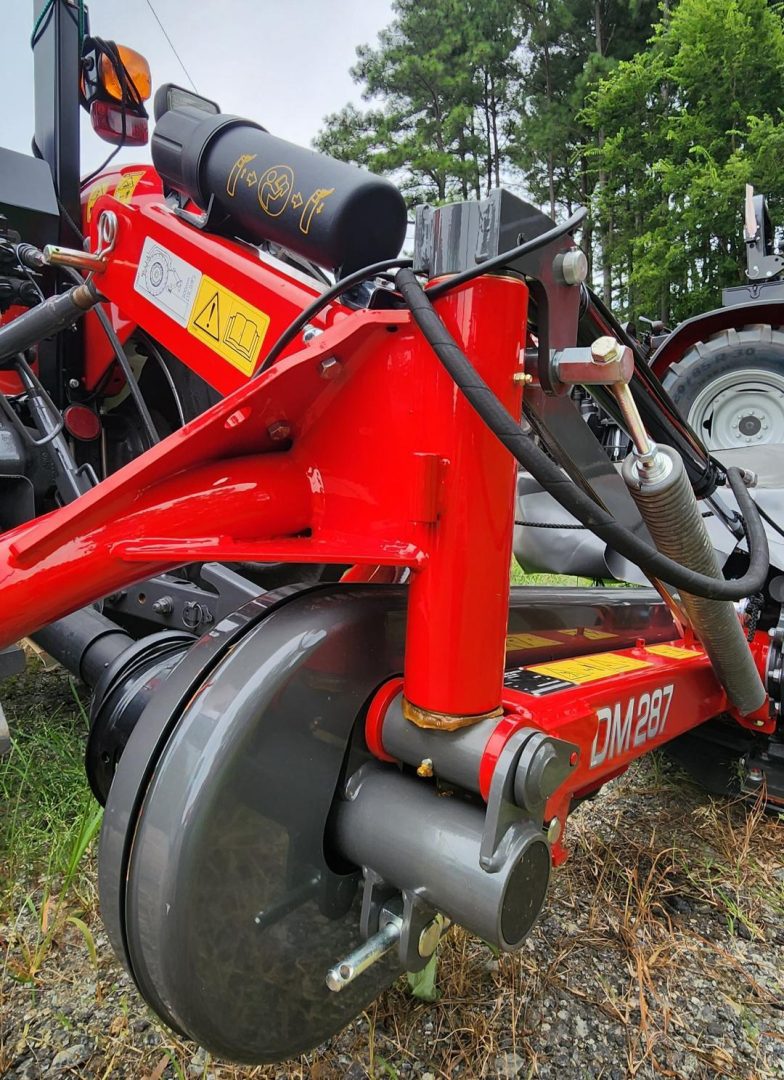

It’s All About Power – Power is transferred through a self-tensioning 4v drive belt, meaning you can power through any crop with minimal need for maintenance. Main drive components are protected by a standard overrunning clutch.
A Match For More Tractors – With relatively low PTO HP requirements and an easy-to-manage size, Farmer Series disc mowers fit nicely with a wide range of tractors and operations.

F SERIES – INNOVATION

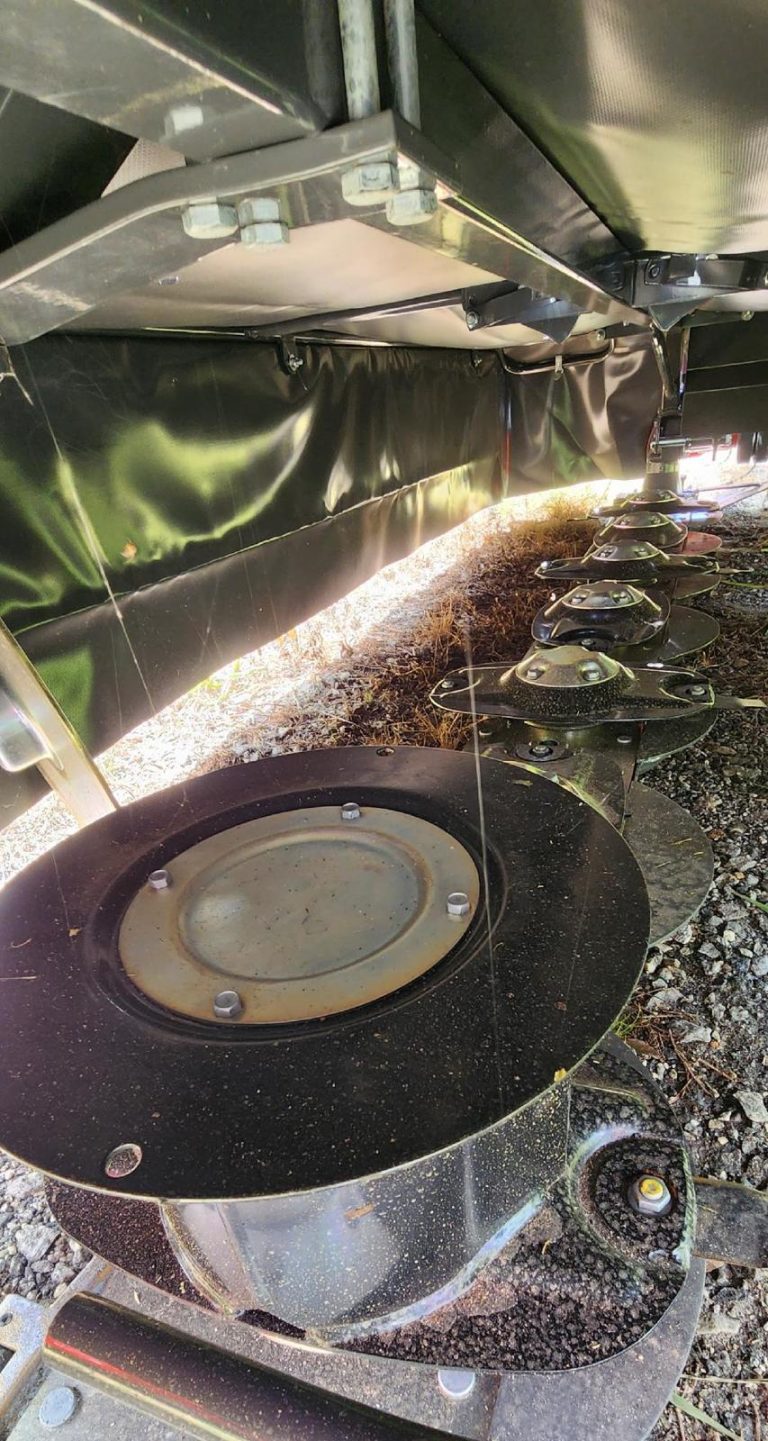

Cut To The Point – Farmer Series disc mowers are equipped with a common oil bath spur gear driven cutterbar that efficiently transfers power to each disc.

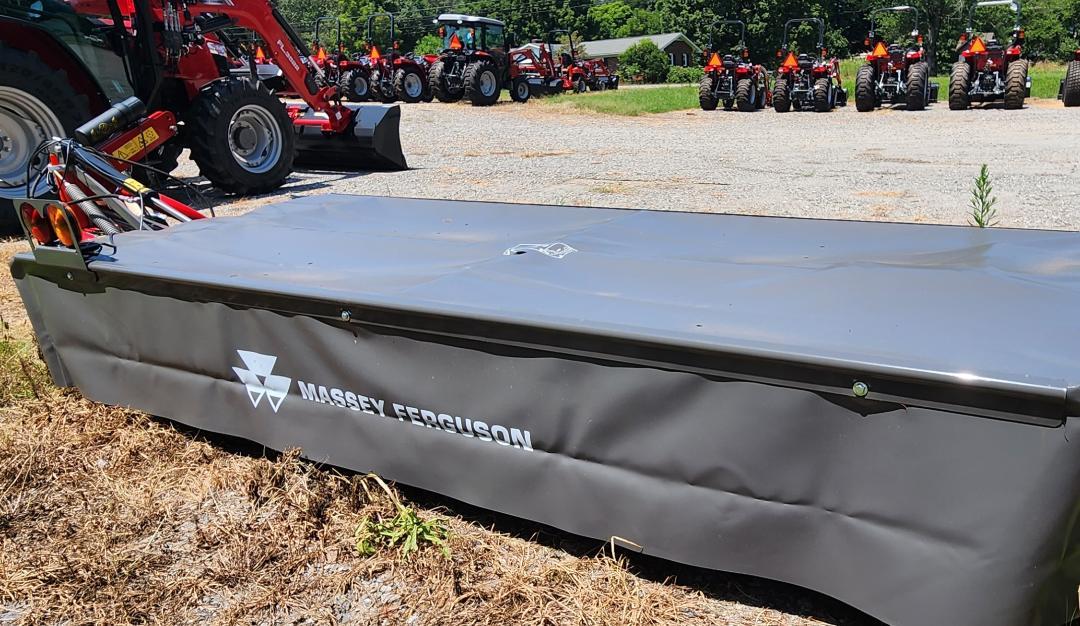

Low Profile – The Cutterbar provides an extremely low profile to give a clean cut through a wide range of cutting heights while keeping horsepower usage minimal.
Set It And Forget It – While operating a Farmer Series disc mower, all you have to do is set the 3-point hitch at the proper height and never have to worry about touching it again. The mower can be hydraulically lifted to a headland position to clear small in-field obstacles.

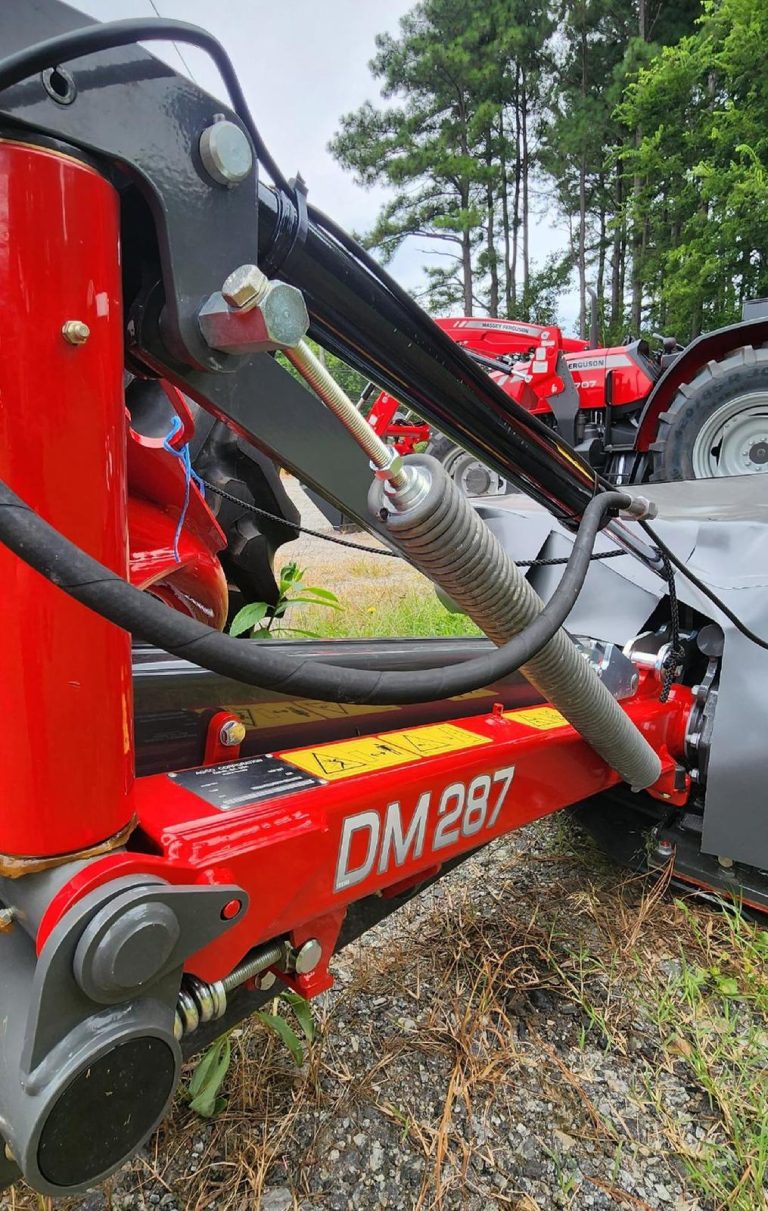

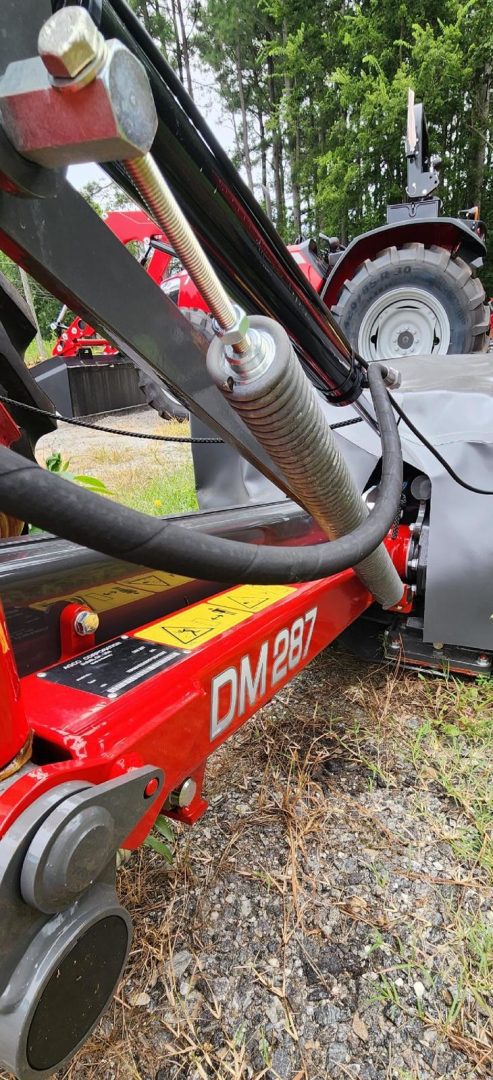

Peace Of Mind – In order to minimize downtime and repair costs, Farmer Series disc mowers are equipped with roll pin shear protection on each disc, as well as spring breakaway protection on the hitch.

Specifications:
Model DM287 (F)
Type Spur gear drive, Rear mounted with Inner drive shoe
Working Width: ft. (m) 9’3″ (2.82)
Minimum PTO HP Requirement 60
Mower Weight lb. (kg) 1047 (475)
